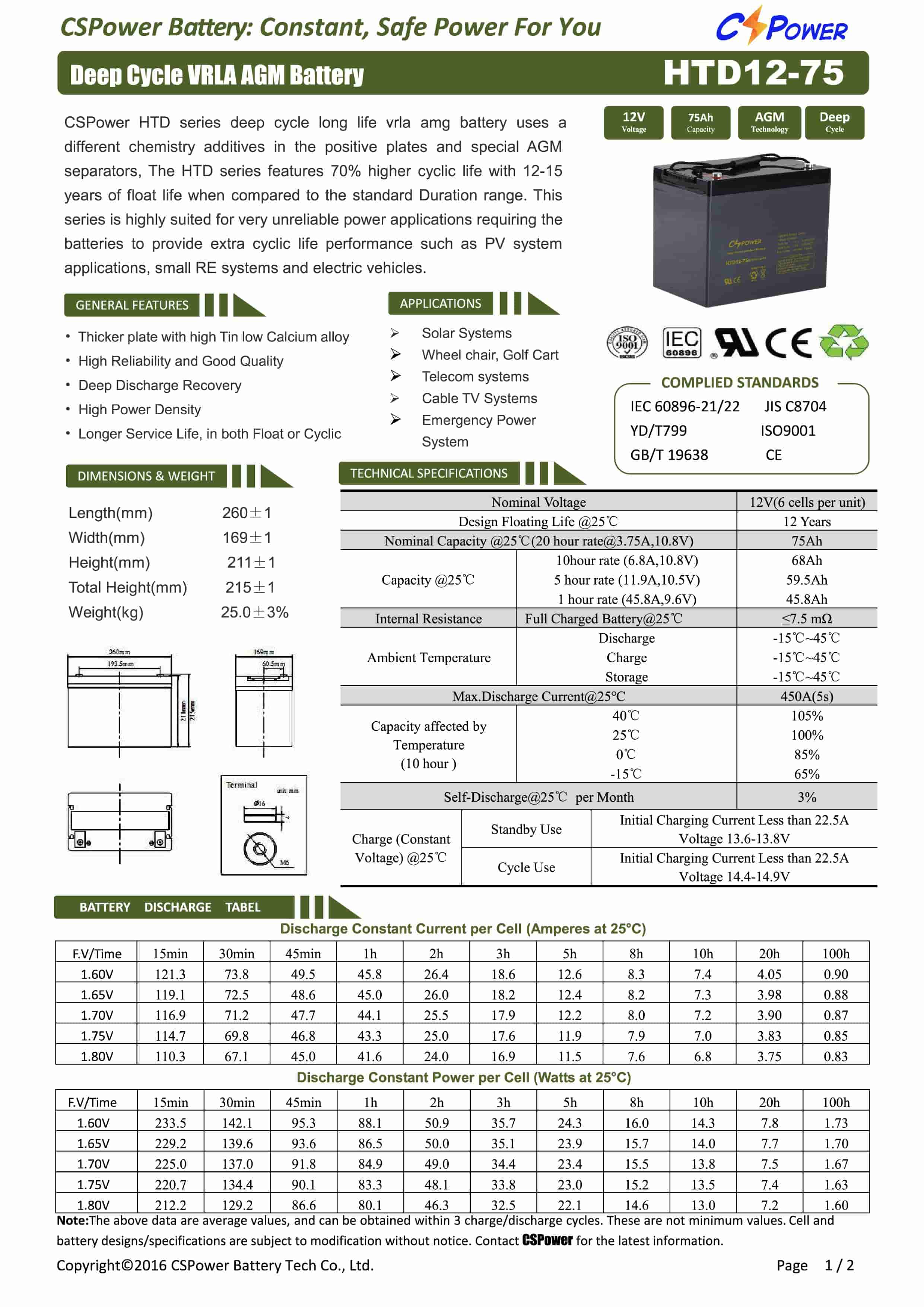

CSPower HTD12-75 Deep Cycle VRLA AGM Battery Featured Image

CSPower HTD12-75 Deep Cycle VRLA AGM Ibhetri

Inkcazelo emfutshane:

● Umthamo: 6V200Ah ~ 6V420Ah, 8V170Ah ~ 8V200Ah, 12V14Ah ~ 12V300Ah.

● Ubomi benkonzo edadayo obuyilwe: 12~15years @25°C/77°F

Iyakwazi ukusebenza kwi -15C ukuya kuma-45°C

50% DOD 1200 imijikelo

Iwaranti yeminyaka emithathu

Ngokwesiqhelo, iintsuku ezingama-30 zemveliso enenaliti yokubumba iLead-plate ngokwethu

Uhlobo lwe-OEM lusimahla.

● Isicelo: Igridi yokuvelisa amandla elanga, iinkqubo zokugcina amandla eGridi evaliwe, IiNkqubo zaMandla omoya, i-sweeper, i-forklift

● Izatifikethi: CE/UL/ISO/IEC 60896/IEC 61427

● Imigaqo yoRhwebo: EXW/FOB/CIF

● Umbala: I-Grey Body Black Cover

Thumela i-imeyile kuthi Khuphela njengePDF

Iinkcukacha zeMveliso

Idatha yoBugcisa

Iithegi zeMveliso

I-HTD12-75
Amandla oMbane			12V (iiseli ezi-6 kwiyunithi nganye)
Uyilo loBomi obuFakayo @ 25℃			Iminyaka eyi-12
Umthamo oqhelekileyo @ 25℃		Izinga leyure ezingama-20 @ 21.0A, 5.4V	75Ah
Umthamo @ 25℃		Izinga leyure ezili-10 (37.8A, 5.4V)	68Ah
		Izinga leyure ezi-5 (66.8A, 5.25V)	59.5Ah
		Ireyithi yeyure e-1 (233.3A, 4.8V)	45.8Ah
Ukuchasa Ngaphakathi		Ibhetri egcweleyo @ 25℃	≤6.5mΩ
Ubushushu obugciniwe		Ukukhupha	-15℃~45℃
		Ukuhlawulisa	-15℃~45℃
		Ugcino	-15℃~45℃
Ubuninzi.Ukukhupha ngoku			@ 25℃ 450A(5s)
Umthamo ochatshazelwa bubushushu (iyure ezili-10)		40℃	105%
		25℃	100%
		0℃	85%
		-15℃	65%
Ukuzikhupha@25℃ngenyanga nganye			3%
Ukutshaja (I-Voltage Constant) @ 25℃	Ukusetyenziswa okulindileyo	Ukutshaja kokuqala ngoku Ngaphantsi kwe-17A Voltage 13.6 - 13.8V
	Ukusetyenziswa koMjikelo	Itshaja yokuqala yangoku Ngaphantsi kwe-17AVoltage 13.6 - 13.8V
Ubungakanani (mmmmmm)	Ubude 260±1 * Ububanzi 169±1 * Ubude 211±1 (Ubude bubonke 215±1)
Ubunzima (kg)	25±3%

Ngaphambili: CSPower HTD12-70 Deep Cycle VRLA AGM Ibhetri

Okulandelayo: CSPower HTD12-85 Deep Cycle VRLA AGM Ibhetri

CSPower UMZEKELO	I-Voltage (V)	Umthamo (Ah)	Ubungakanani				Ubunzima (kg) (±3%)	Indawo yokukhwelela	Ibholt
CSPower UMZEKELO	I-Voltage (V)	Umthamo (Ah)	Ubude (mm)	Ububanzi (mm)	Ubude (mm)	Ubude obupheleleyo (mm)	Ubunzima (kg) (±3%)	Indawo yokukhwelela	Ibholt
I-HTD6-250	6	250/20HR	260	178	265	272	34.8	T5	M8×18
I-HTD6-310	6	310/20HR	295	178	354	360	46.3	T5/AF	M8×18
I-HTD6-330	6	330/20HR	295	178	354	360	46.6	T5/AF	M8×18
I-HTD6-380	6	380/20HR	295	178	404	410	55.3	T5/AF	M8×18
I-HTD6-420	6	420/20HR	295	178	404	410	56.8	T5/AF	M8×18
I-HTD8-170	8	170/20HR	260	182	266	271	34.3	M8
I-HDD8-200	8	200/20HR	260	182	295	301	38.3	M8
I-HTD12-14	12	14/20HR	152	99	96	102	4	F1/F2	/
I-HTD12-20	12	20/20HR	181	77	167	167	6	T1/D1	M5×12
I-HTD12-24	12	24/20HR	166	175	126	126	8.3	T2	M6×14
I-HTD12-26	12	26/20HR	165	126	174	179	8.4	T2	M6×14
I-HTD12-35	12	35/20HR	196	130	155	167	10.5	T3	M6×16
I-HTD12-40	12	40/20HR	198	166	174	174	14.2	T2	M6×14
I-HTD12-55	12	55/20HR	229	138	208	212	16	T3	M6×16
I-HTD12-70	12	70/20HR	350	167	178	178	23.3	T3	M6×16
I-HTD12-75	12	75/20HR	260	169	208	227	25	T3	M6×16
I-HTD12-85	12	85/20HR	260	169	208	227	26.1	T3	M6×16
I-HTD12-90	12	90/20HR	307	169	211	216	28.2	T3	M6×16
I-HTD12-100	12	100/20HR	307	169	211	216	30.2	T3/T4/AP	M6×16
I-HTD12-110	12	110/20HR	331	174	214	220	33.3	T4/AP	M8×18
I-HTD12-120	12	120/20HR	407	173	210	233	39.2	T5	M8×18
I-HTD12-135	12	135/20HR	344	172	280	285	41	T5/AP	M8×18
I-HTD12-150	12	150/20HR	484	171	241	241	45.5	T4	M8×18
I-HTD12-180	12	180/20HR	532	206	216	222	56	T4	M8×18
I-HTD12-200	12	200/20HR	532	206	216	222	58.4	T4	M8×18
I-HTD12-230	12	230/20HR	522	240	219	225	65	T5	M8×18
I-HTD12-250	12	250/20HR	520	268	203	209	71	T5	M8×18
I-HTD12-300	12	300/20HR	520	268	220	226	77	T5	M8×18
Iimveliso ziya kuphuculwa ngaphandle kwesaziso, nceda uqhagamshelane neentengiso ukuze uchaze uhlobo oluphumelelayo.
